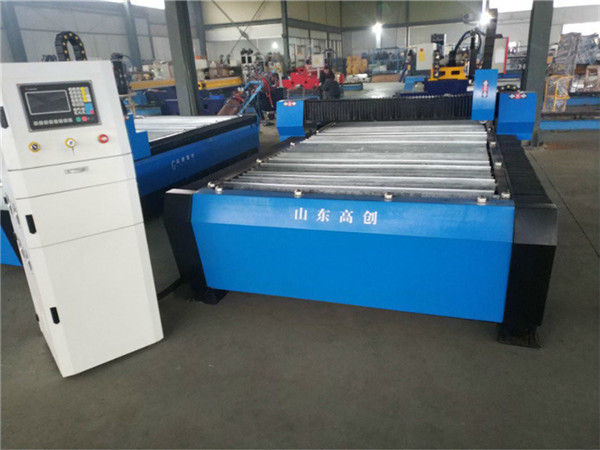

Jinan CE beroep 1325 klein CNC plasma snymasjien
Basiese inligting


Customized: Customized
Toestand: nuut
Color: Customized
Werkarea: 1300 * 2500mm
Idling Speed: 15.000mm/Min
Working Speed: 10.000mm/Min
Precision: 0.07mm
Positioning Accuracy: 0.02mm
Machine Structure: Channel Steel Lathe Bed,Serrated Table

Produk Beskrywing


Product Overview
Plasma series is mainly applied to non-insulating material cutting,According to material thickness,power source of different current are correspondent choices to best fit precision request.

Kenmerke
1.Steel structure lathe bed is capable of loading heavy metal sheet of large size.
2.Indline design under table surface makes finshed parts and scrap slide down to both side along,convenient and safe for operator.
3.DSP-hand-held control system dedicated for plasma machine,supports file reading from U disk or downloading from computer,providing high independence and great convenience duringoperation.
4.Racks and gears as transmission raise moving speed so that large area cutting can be done in short time.
5.High sensitivity THC(Torch Height Controller)is optional for auto adjustment to cutting distance and cutting precison.
6. Plasma cutting machine Y axis adopts double moters with double drivers. XYZ axis round raill, moving smoothly, with high accuracy. (Option: Square rail)
7. Excellent cutting 3D illuminated letters for advertising and channel letters on metal surface board.
8. Arc voltage height controller
9. Small cutting gap, no residua.
10. Plasma Cutter working together with other advertising machines, such as CNC Router etc, improving working efficiency
11. Superior plasma power, Taiwan linesr rail, ensure vertical section, more percision.
12. US. Haibao power and domestic Huanyuan power
13. Drive system uses a system of Beijing Stuart

Technical Specification


modelQL-1325 plasma snymasjien
Werkgrootte1300x2500mm
Herhaal die akkuraatheid van die posisionering± 0.05mm
Reissnelheid0-24000rpm/min
Sny spoed100-8000mm/min
WerkspanningAC380 / 50HZ
TransmissiemodelAandrywing van ratte
Transmissiestelselhigh-precision, zero clearance increased linear guide + rack
SnystelselBeijing Stuart snystelsel (Engels)
bestuurderStraalprop dryf 860
(Sino-us joint venture large drives
Plasma kragbronImported US Haibao or Domestic Huayuan
Sny dikte6-25mm
Cutting typePlasma/oxy-acetylene or propane
Insetspanning3 phase, 220v/380v±10%
Mode of file transferUSB-koppelvlak
Kragtoevoer65A US Haibao power supply
Gids manierIngevoerde vierkante spoor
Tafel-raadStaal lem saag tandemesa
Straight line positioning precision± 0.2mm / 10m
Straight line repeat precision±0.3mm/10m
Environmental temperature-5~45°C
humiditeit<90% No concreting
